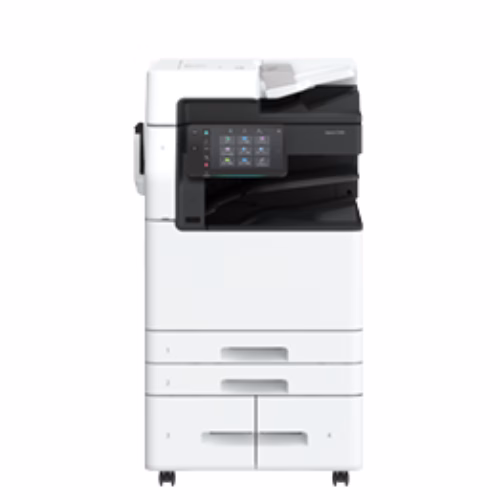

Apeos C5570
Embark on your digital transformation journey
Designed to accelerate your digital transformation (DX) journey, new Apeos series with its smart and seamless integration features present itself as a trusted digital partner.
- A well-balanced multifunction printer as primary/secondary device
- A device that can assist them in developing a remote yet seamless working environment
- A device that can be used on the go with seamless connectivity options
- A device that allows convenient information sharing anytime, anywhere
- A device that allows tracking by department usage patterns for maximising work and cost efficiency
| Specification | Details |
|---|---|
| Model | Apeos C5570 |
| Warm-Up Time | [Embedded Plug-ins / Custom Services] *3 When enabled: 30 seconds or less (23 degrees Celsius room temperature) When disabled: 24 seconds or less (23 degrees Celsius room temperature) |
| Recovery Time (Recovery Time from Sleep mode | 13 seconds or less (23 degrees Celsius room temperature) |
| First Output Speed | B/W*6 : 3.7 sec Colour*7 : 5.2 sec |
| Continuous Output Speed*8 | 55 ppm |
| Memory | HDD*1 | 4 GB (Max: 4 GB) | 128 GB SSD |
| Dimensions | 4 Tray Model (DADF B2-PC) : W 658 x D 720 x H 1119 mm 4 Tray Model (DADF C2-PC) : W 658 x D 790 x H 1169 mm |
| Weight*11 | 4 Tray Model (DADF B2-PC) : 129 kg 4 Tray Model (DADF C2-PC) : 146 kg |
| Power Supply | AC220-240 V +/- 10 %, 10 A, 50/60 Hz common |
| Multiple Copy | Up to 999 copies |
| Printing Resolution | 1200 x 2400 dpi (Text-Photo / Photo), 600 x 600 dpi (Text / Map) |
| Continuous Print Speed*4 | Same as the Basic Specifications / Copy Function |
| Paper Sizes |
MaxSRA3 (320 x 450 mm), 12 x 18″ (305 x 457 mm), A3 MinA5, Postcard (100 x 148 mm) [89 x 98 mm when using Bypass Tray] Image loss width*4Lead edge 4.0 mm, Trail edge 2.0 mm, Right/Left edge 2.0 mm |
| Paper Input Capacity*9 | Standard : 4 Tray Model: 520 sheets x 4-tray + Bypass Tray 90 sheets Tandem Tray Model: 520 sheets x 2-tray + 840 sheets + 1230 sheets + Bypass Tray 90 sheets Optional : High Capacity Feeder B1: 2000 sheets High Capacity Feeder B2: 2940 sheets Max : 4 Tray Model: 5110 sheets (4 Tray Model + High Capacity Feeder B2) Tandem Tray Model: 6140 sheets (Tandem Tray Model + High Capacity Feeder B2) |
| Paper Output Capacity | Upper Center: 250 sheets (A4 LEF) Lower Center: 250 sheets (A4 LEF) |
| Paper Weight | Paper Tray and Bypass Tray: 52–300 gsm |
